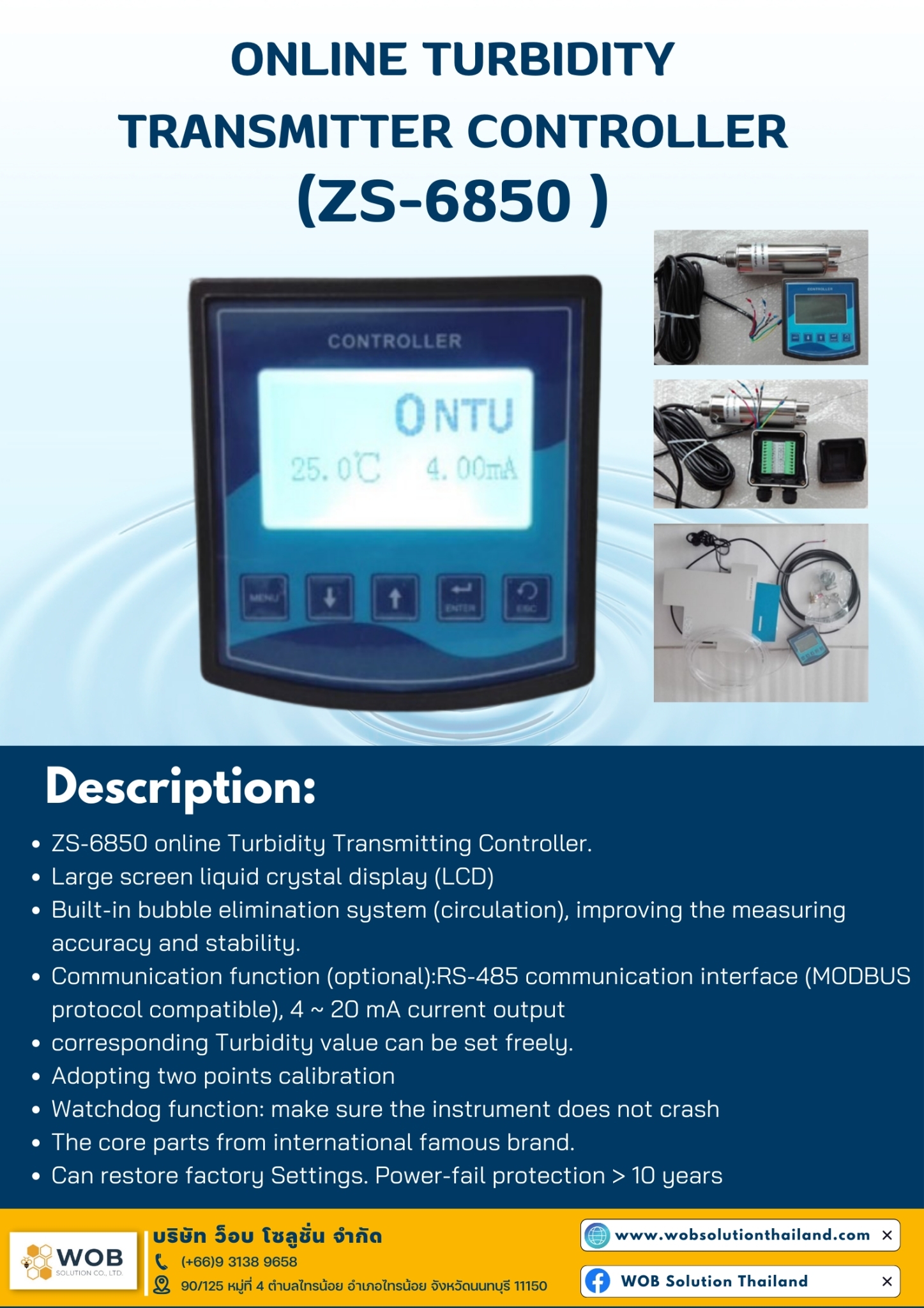

ZS-6850 Online Turbidity transmitter controller
Description:
● ZS-6850 online Turbidity Transmitting Controller.

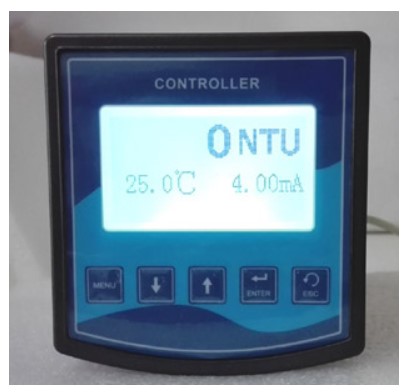

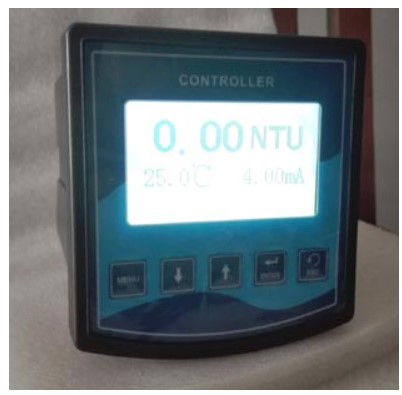

● Large screen liquid crystal display (LCD)

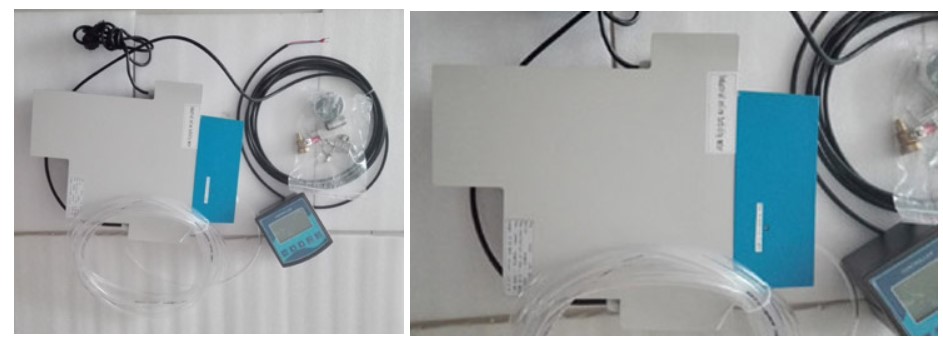

● Built-in bubble elimination system (circulation), improving the measuring accuracy and stability.
● Communication function (optional):RS-485 communication interface (MODBUS protocol compatible), 4 ~ 20 mA current output
corresponding Turbidity value can be set freely.
● Adopting two points calibration
● Watchdog function: make sure the instrument does not crash
● The core parts from international famous brand.
● Can restore factory Settings. Power-fail protection > 10 years
Main technique Specification:
Model Function
ZS-6850 online Turbidity Transmitting Controller
Measuring Range
Circulation Type:
0-10，0-20，0-100, 0-400 NTU
Submerged Type:
0-500, 0-2000, 0-4000NTU
Measuring range can order as per request
Display
Large screen LCD
Resolution
0.1%
Accuracy
±1.5% (F.S.)
Repetitive
±1.0%
Analog output
load <750Ω (4-20mA)
Switched output
2 Relays, 3A 220V AC/24V DC
Power
≤10W
AC 220V±10%, 50/60Hz
Working environment
Ambient Temp. 0-60℃, Relative Humidity ≤90% or less
Dimensions
96×96×115mm (H X W X D), 0.8kgs
Hole size
91×91mm H X W)
Installation Mode
Panel Mounted
